PV3 Nozzle Technical Sheet

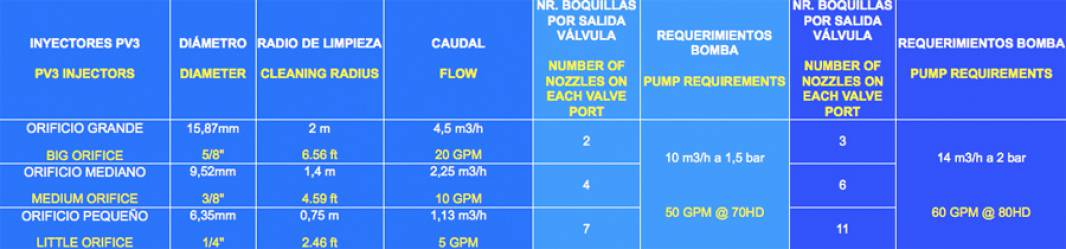

PV3 nozzle characteristics:
Maximum Effective Cleaning Radius: 2 meters (6,5 feet)
Installation: Inside Standard Rigid PVC Pipe 63 mm 16 Bar.
Three Settings with each Nozzle: Maximum Radius to clean floors, Medium Radius to clean Steps, Benches and Submerged Seats or Spa, and Minimum Radius to clean difficult areas.
Versatility:
Manufactured in eight different colors: WHITE, LIGHT BLUE, DARK BLUE, SAND COLOR, DARK BROWN, LIGHT GRAY, DARK GRAY, BLACK.
Non-electric Hydraulic Distributor Valve - European size for Standard Rigid PVC pipe of 63 mm PN16. Available with 2, 3, 6, 9 and 12 outputs.
INSTALLATION TOOL: 4 SUPPORTS FOR STANDARD POLE
BASIC INSTALLATION RULES:
Nozzles are installed a maximum of 1 meter from the finished interior of the vertical wall or change in slope. They are installed so that their cleaning radii overlap each other in order to direct dirt effectively and not leave any bare surfaces.
For upper steps, submerged benches and seats, Spa areas and areas that are difficult to clean, nozzles with medium and small cleaning radii are installed according to the surfaces to be cleaned.
For cleaning floors, the nozzles with the largest radius are used, covering large surfaces with a reduced number of nozzles.
For domestic pools of medium and small sizes and for Spas, it is recommended that the Integrated Cleaning System works with the same pump as the Filtering System, using a Filter with a Large Filtering surface and low flow retention such as the Smart Filter.
For large and Commercial pools it is recommended that the Integrated Cleaning System works with an Additional Pump. The type, power and flow rate of the pump is defined in the supplied Installation Plan.
Si la distancia entre la ubicacion de la bomba que alimenta el Sistema Integrado de Limpieza y la mas alejada boquilla supera los 15 metros, o en el tramo de tuberia existen demasados accesorios (Codos PVC de 90º) que crean retenciones, se recomienda instalar una bomba de una potencia superior.
If the nozzles have been set wrong (a different radius than desired), the setting is reversible and can be corrected by choosing the desired cleaning radius.
For areas with two nozzles, the flow must be distributed equally between the two nozzles by installing a "T". For areas with three or more nozzles, three or more "T" should be installed to distribute the water flow equally to all of them.
The Hydraulic Distributor Valves with 2, 3 and 6 outlets are Monobloc.
Hydraulic Distributor Valves with 9 and 12 outlets are Composite Valves.
Recommended pumps:
SMART HYDROSTORM 100 / 200 / 250
SMART HYDROSTORM PLUS 100 / 500 / 250
Recommended Pipe: Standard Rigid PVC 63 mm PN16.
Recommended Water Intake for Integrated Cleaning Systems with Dedicated Pump:
For pools with Skimmers: The pump sucks through the second 63 mm outlet of each Skimmer.
For Overflow pools: The pump sucks from at least two SDX Suctions installed on the Vertical Wall of the Compensation Tank at a suitable height - not too high (to avoid sucking in air) and not too low (to avoid sucking in dirt from the ground).
Recommended Sumps: MDX - Active Sump.
Recommended Skimmers: Paramount Venturi Skimmer./Smart High Flow Skimmer.
Waste Containers Recommended: Paramount Pools Exterior or Interior Collection Basket.

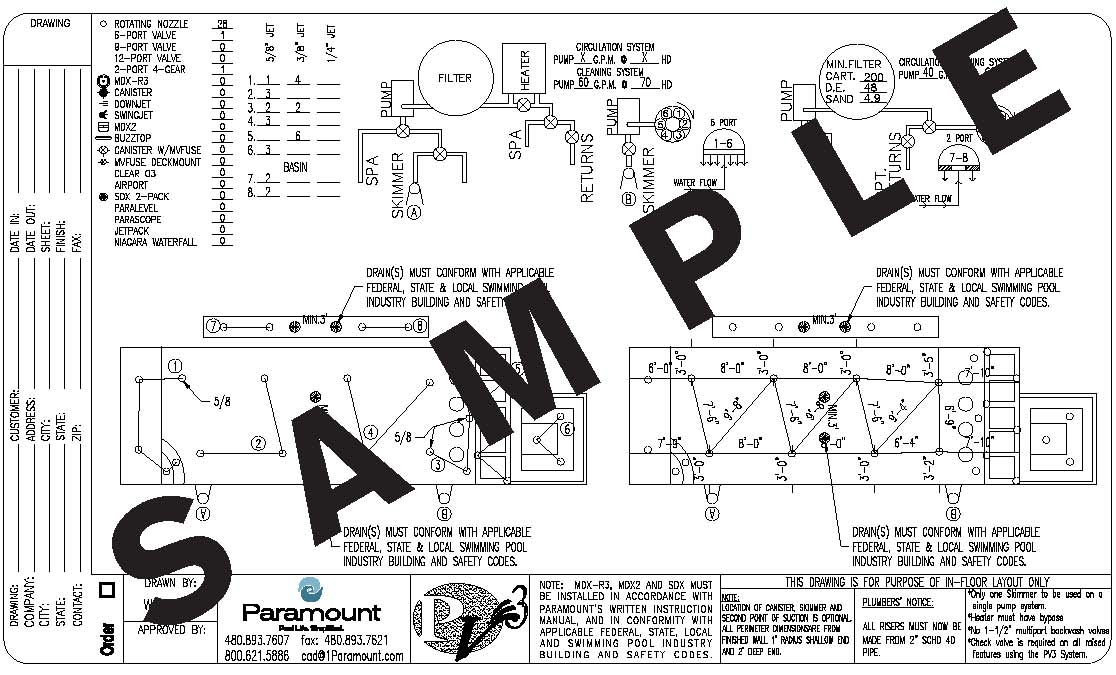

Sample of an installation plan supplied free of charge:
