Instalation Guide PV3
PV3 Nozzle Body Installation Guide
NOTE: Strong glue for PVC required

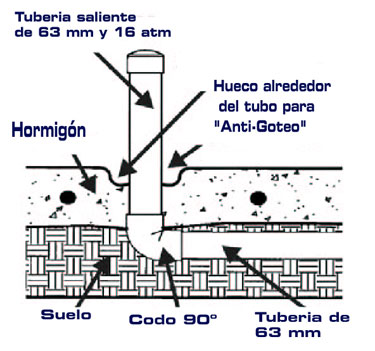

1.- Cut the protruding tubes flush with the concrete floor
2.-Remove the cover. Prepare to glue the inside of the protruding pipe. Do not prepare the PV3 body
3.- Glue the PV3 body inside the outgoing pipe. Use a strong PVC glue.
The glue must cover the entire cylindrical part of the PV3 Body and about 8 cm inside the protruding pipe. Insert the PV3 Body into the outgoing pipe as far as it will go. (see image above)
DO NOT TURN THE BODY INSIDE THE PIPE
4.- Let the glue evaporate for about 30 minutes and then replace the lids on the bodies.
GO TO THE POOL FLUSH
Leave all covers on until the pool is finished
NOTE: Optional, the furring team can remove the caps while they finish their work.
NOTE: The PV3 Body does not have the head installed.
